Short review

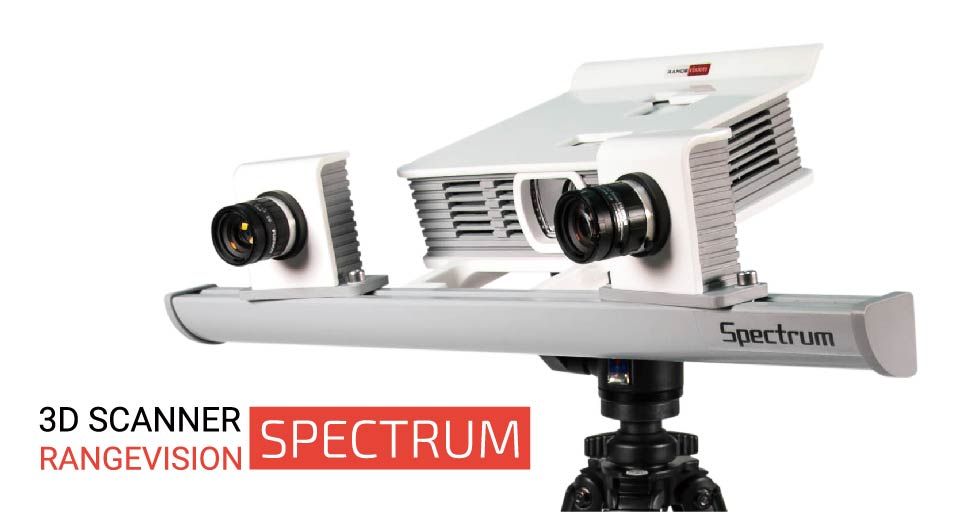

RangeVision Spectrum is a new high-resolution 3D scanner based on the safe-to-use structured light technology. It is designed for scanning small, medium and larger objects. The 3D scanner has three fields of view and is equipped with 3.1 Mpix industrial color cameras. RangeVision Spectrum captures complex geometry, flat and long objects, as well as small details with constantly high 3D resolution while keeping the accuracy up to 0.04 mm.
Key advantages
|
 |
 |
 |
"3-in-one" scanner
three scanning zones to capture different-sized objects from 1cm up to 3m | 3.1 Mpix industrial cameras
for highly detailed and full-colour scans | Three scan modes
to render complex geometry of objects of any size and shape |
Technical specifications
|
General |
Scanning zones |
Turntable |
Hardware |
|
Light-source |
DLP |
|
Cameras |
3.1 Mpix |
|
Scan speed |
12 sec per scan |
|
Align modes |
by markers, by geomerty, on automatic turntable |
|
Export format |
STL, OBJ, PLY |
|
Texture |
Yes (included) |
|
Automatic turntable |
Yes (included) |
