About the product

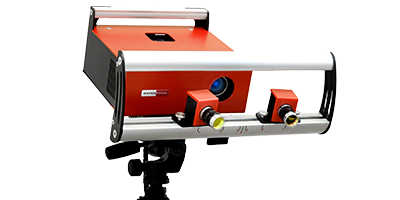

Most of the 3D scanners available on the current market are targeted at scanning objects of specific size and dimensions. Professional RangeVision 3D scanners have revolutionized the 3D scanning scenario – they are capable of scanning objects of different shapes and sizes simply by changing the scanner's field of view (FOV).
Due to the use of the structured light technology, professional RangeVision 3D scanners provide highly detailed scans of any type of object, from jewelry to large automobiles, with accuracy up to 0,03 mm and resolution up to 0,043 mm.
Model range
The family of professional RangeVision 3D scanners is presented with two models. The superior calibration used in each model makes sure that the scans are producing excellent results. The models differ in the type of cameras.
Software
RangeVision 3D scanners can easily scan with the use of a rotary table, markers or without them at all. Align and merge 3D scans into a complete digital 3D model quickly without exporting to a separate post-processing software: each RangeVision 3D scanner comes with RangeVision software to process the data and create 3D models. Data editing, alignment and merging capabilities, filling holes are built-in. The output formats (.STL, .OBJ, .PLY, .ASCII) enable you to use for further processing all popular CAD/CAM programs - Solidworks, Autocad and 3D modeling software – 3DsMax, Maya, Zbrush and others. User-friendly RangeVision software comes with free updates and is included in the price of all RangeVision 3D scanners.
|
Model |
PRO 2M |
PRO 5M |
|
Cameras (matrix) |
2 MPix, 1/1.8" |
5 Mpix, 2/3" |
|
3D resolution |
0.03 - 0.3 mm |
0.04 - 0.15 mm |
|
Scan speed |
~ 12 s |
~ 15 s |
|
Projector |
Full HD |
|
|
|
|
Technical specification
|
[ 1 ] |
[ 2 ] |
[ 3 ] |
[ 4 ] |
[ 0 ] |
|
Field of View (HxWxL)(mm) |
460*345*345 |
300*225*225 |
133*100*100 |
66*50*50 |
850*530*530 |
|
3D point accuracy |
0.06 |
0.03 |
0.018 |
0.018 |
0.16 |
|
3D resolution PRO 2M |
0.19 |
0.12 |
0.06 |
0.03 |
0.3 |
|
3D resolution PRO 5M |
0.15 |
0.1 |
0.04 |
- |
- |
|
Working distance(mm) |
900 |
520 |
300 |
270 |
2000 |
|
Dimensions of scanning unit (WxHxL) |
450х150х400 mm |
|
Output format |
STL |
|
Light source |
Halogen lamp |
|
Scanning principle |
Structured light |
|
Weight |
7 kg |
|
Power |
220V, 500W |
|
Calibration time |
7 min |
