軟體
VRTEX焊接模擬軟體
THEORY功能在虛擬環境中定義元素
Virtual位置:焊接站、管件加工車間、沙地、鐵件建築工地、修車廠間
顯示器
17 in. LCD Touchscreen Monitor with built-in speakers

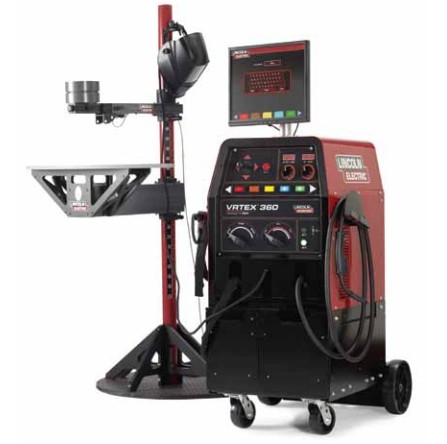

VRTEX 360 Stand
Welding stand with independent table and arm height adjustment offers flexibility and
supports multi-position welding. 90, 45 and 0 degree arm positions allow for 2G, 5G and
6G pipe welding
VRTEX 360 Stinger and Gun
VRTEX 360 gun is based on the Magnum®
300 welding gun; VRTEX Stinger device retracts
at rate of electrode melt off; Simulates SMAW, GMAW, FCAW-S and FCAW-G
» SMAW
- E6010 (Fleetweld®
5P+)
- E6013 (Fleetweld 37)
- E7018 (Excalibur®
7018 MR®
)
» GMAW
- Short Arc: SuperArc®
L-56®
, 0.035 in. (0.9 mm)
- Axial Spray: SuperArc L-56, 0.045 in. (1.1 mm)
- Pulse: SuperArc L-56, 0.045 in. (1.1 mm)
- STT®
: SuperArc L-56, 0.045 in. (1.1 mm)
» FCAW
- Gas-Shielded: UltraCore®
71A85, 0.045 in. (1.1 mm)
- Self-Shielded: Innershield®
NR®
-232, 5/64 in. (2.0 mm)
|
