Delivery time:5-7 Days
  • Description

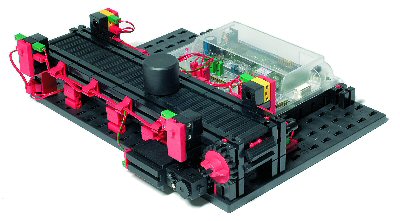

Machining center with bin for workpieces, turntable, machining station, compressor and conveyor belt for the transport of workpieces.

Scope of Delivery:

• one double-action and two single-action pneumatic cylinders, four 3/2 way magnetic valves, 1 DC motor, 4 switches (potential free), 2 light barriers consisting of phototransistor and lens tip bulb

• Model is mounted on a stable wooden board, carton packaging.

• 6 digital inputs

• 6 outputs, 9V
